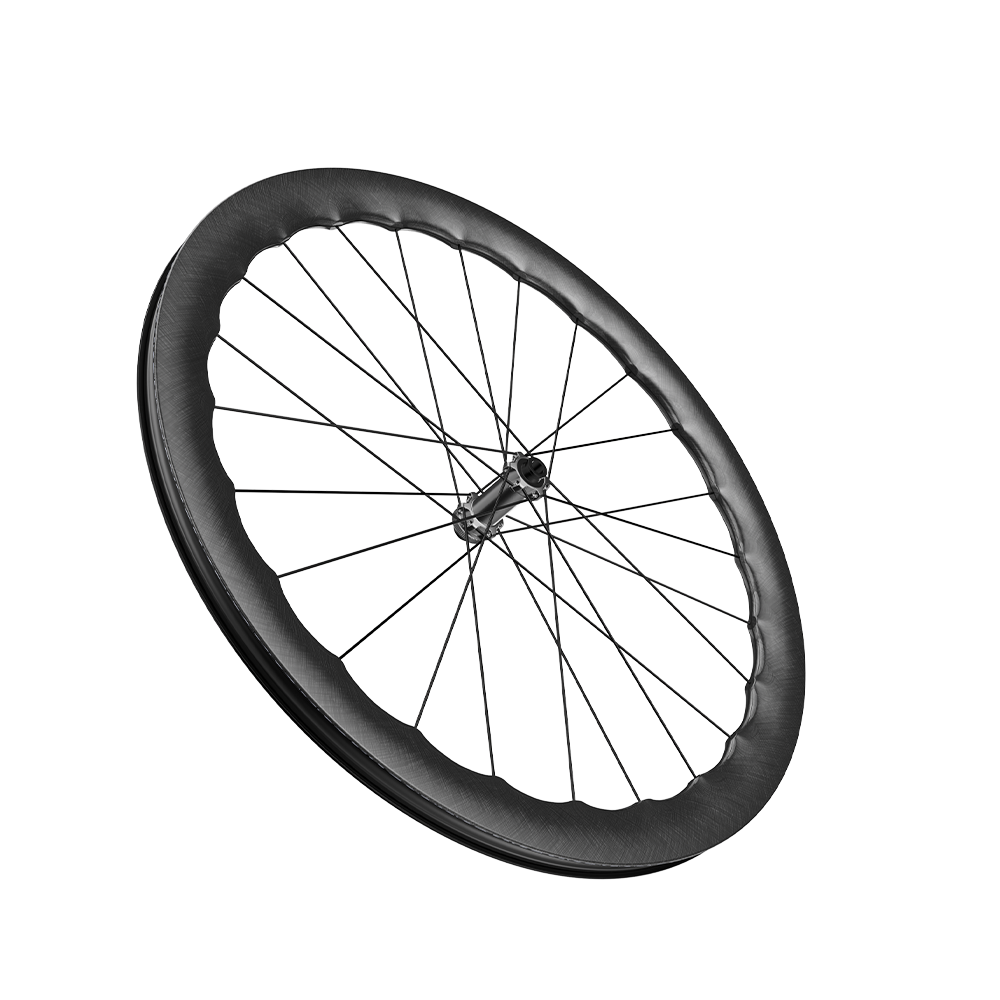

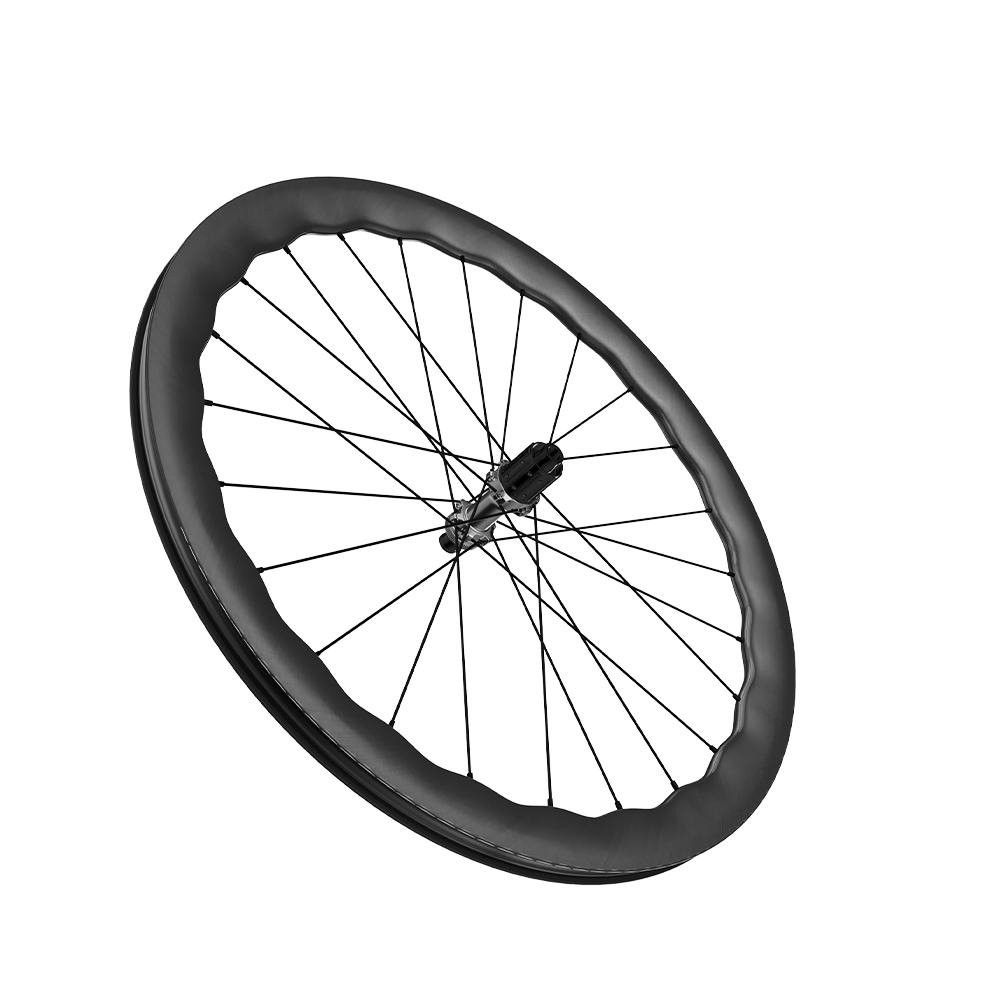

High-performance Road Disc Wheel with Arch Bridge Design

The D5 is a high-performance road disc brake rim that features an arch bridge design for improved aerodynamics and stiffness. With a 23mm inner width and asymmetric profile, this rim is optimized for use with wider tires and delivers a smooth and stable ride. The carbon construction keeps the weight down while providing excellent strength and durability.

  • With a 50mm rim profile but only weighing 1340g, D5 offers a compelling combination of high speed eficiency and weight.
  • The mini-hook opens up lots of tyre choices but it also improves the fit of the tyre to the rim, further enhancing aerodynamics.
  • The hub and spokes combined with our range topping rim ensure the highest performance and reliability.

D5


$799.00

Description

Specifications

Net weight (Pair)1340g
Material100% carbon fiber
Height50 mm
Inner width23 mm
DrillingFore Carbon tapeless tubeless technology (front/rear 24 holes)
BrakingDisc
ETRTO622x21TC
Tire interfaceClincher Tubeless Ready, Mini-Hook
Max weight limit120kg
Body material7075-T6 Aluminium
Freehub SystemRatchet 54T
Freehub bodyShimano 10/11/12s, Sram XDR
Disc standardCenter Lock
BearingsEnduro
Axle materialAluminum
Axle System12 mm Thru Axle, front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
ModelSapim CX-Ray
MaterialSteel
Shapestraight, aero, constricted, antirot (front and rear)
NipplesCN AN14 black
ScrewM6

The D5 Disc Brake wheel is entirely hand-assembled by a specialised technician and is 100% checked by electronic instrumentation. This procedure ensures that every single wheel offers maximum performance and reliability.

DELIVERED WITH

D5 Wheelset

x 1

Rim Tape

x 2 (Pre-installed)

Tubeless Valves

x 2 (Pre-installed)

TPU Tubes

x 2

Boostor Water Bottle

x 1

KEY TECHNOLOGY
