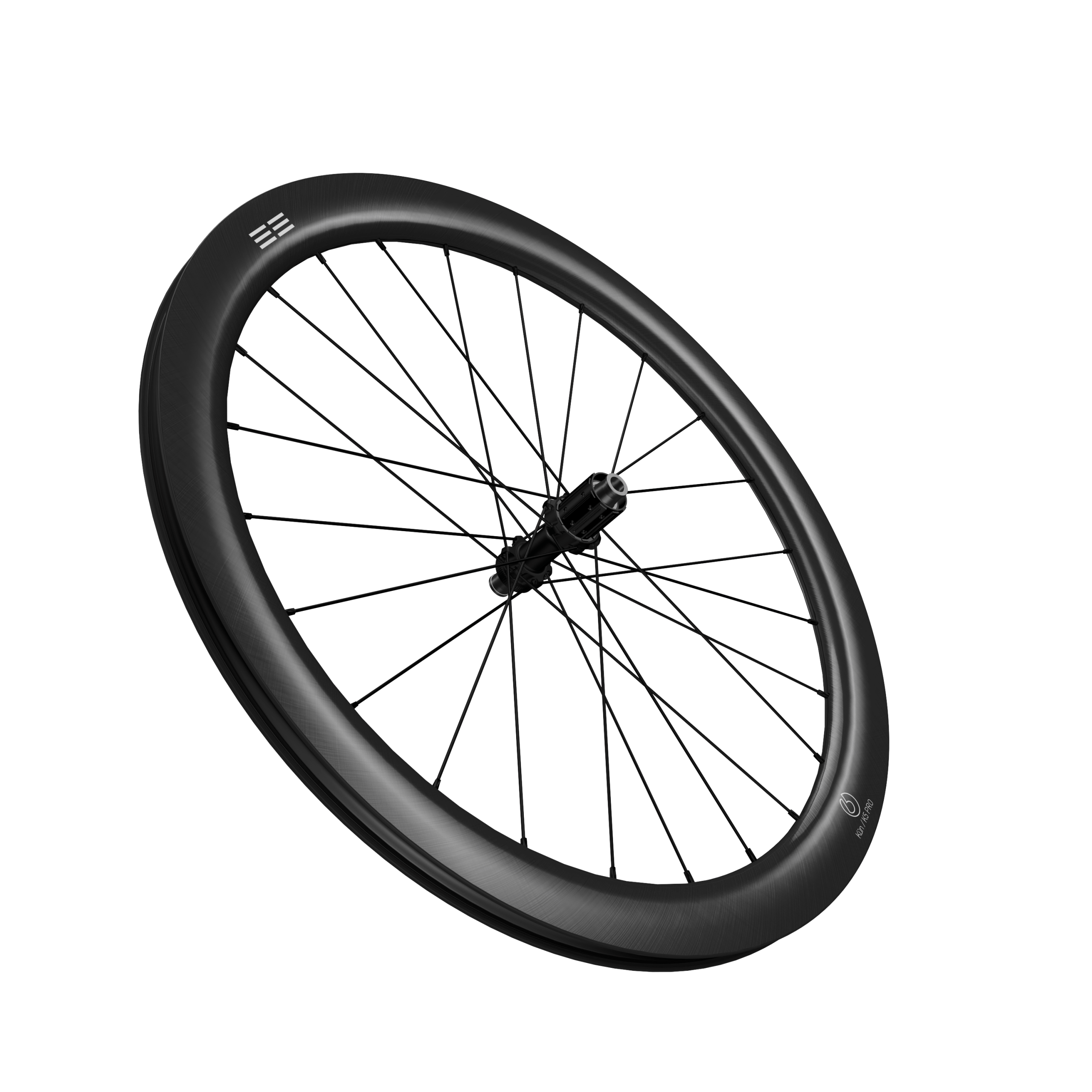

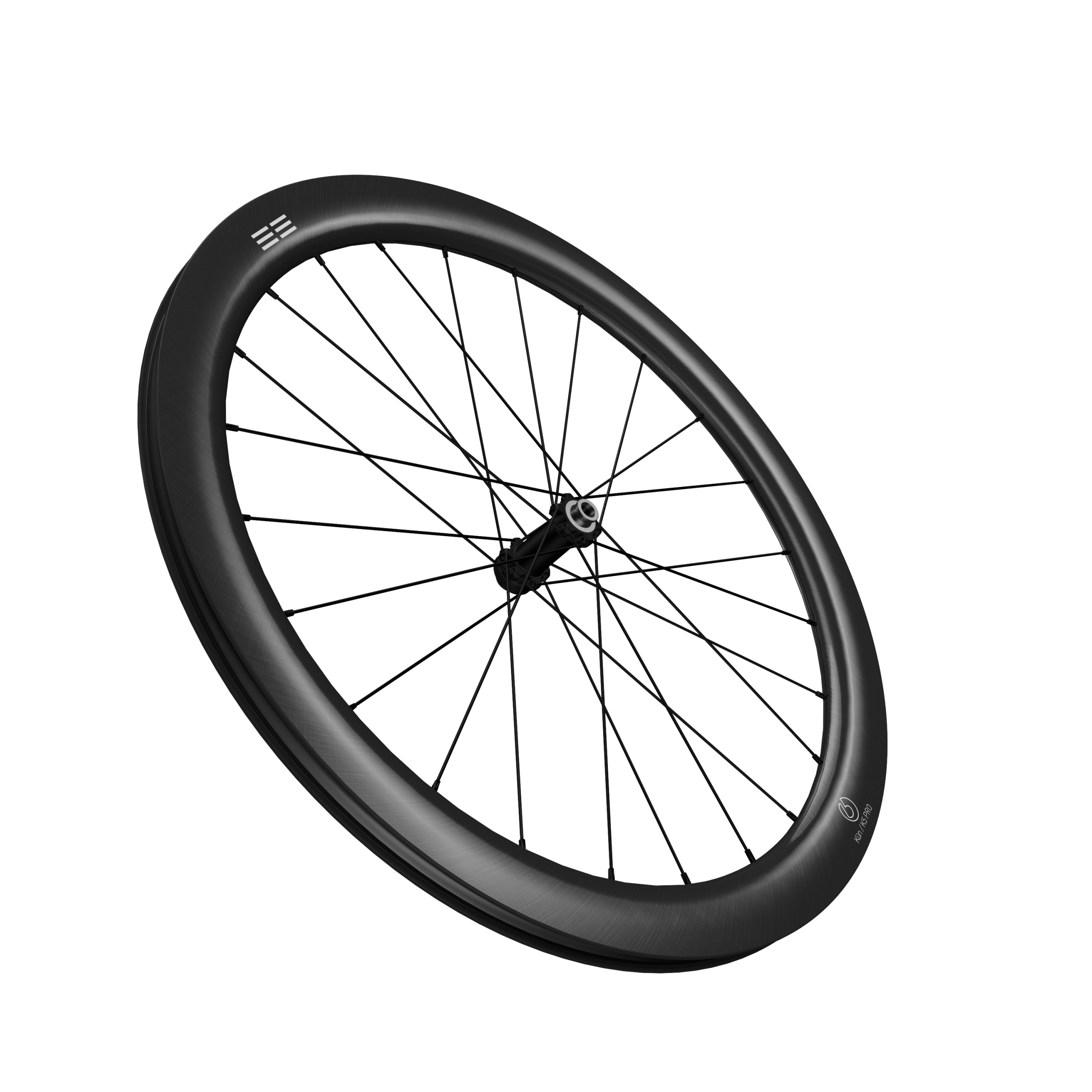

K5 Pro
50mm deep tubeless friendly rim that’s light and dynamic.
The perfect balance of aerodynamics and weight
- With a 50mm rim profile but only weighing 1360g, our K5 Pro offers a compelling combination of high speed eficiency and weight.
- The mini-hook opens up lots of tyre choices but it also improves the fit of the tyre to the rim, further enhancing aerodynamics.
- The hub and spokes combined with our range topping rim ensure the highest performance and reliability.
K5 Pro
$749.00PAIR
RATCHET TECH
The patented freewheel system, which features high-precision star ratchets,guarantees top performance and reliability.
The simultaneous engagement of the ratchet teeth makes the Ratchet System extremely reliable since the loads are distributed equally across a large contact surface.
Specifications
Weight
Net weight (Pair) | 1360g |
---|
Rims
Material | 100% carbon fiber |
---|---|
Height | 50 mm |
Inner width | 21 mm |
Drilling | Fore Carbon tapeless tubeless technology (front/rear 24 holes) |
Braking | Disc |
ETRTO | 622x21TC |
Tire interface | Clincher Tubeless Ready, Mini-Hook |
Max weight limit | 120kg |
Hubs
Body material | 7075-T6 Aluminium |
---|---|
Freehub System | Ratchet 36T |
Freehub body | Shimano 10/11/12s, Sram XDR |
Disc standard | Center Lock |
Bearings | Enduro |
Axle material | Aluminum |
Axle System | 12 mm Thru Axle, front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included) |
Spokes & Nipples
Model | CN AERO 416 |
---|---|
Material | Steel |
Shape | straight, aero, constricted, antirot (front and rear) |
Nipples | CN AN14 black |
Screw | M6 |
Assembly
The K5 Pro 50 Disc Brake wheel is entirely hand-assembled by a specialised technician and is 100% checked by electronic instrumentation. This procedure ensures that every single wheel offers maximum performance and reliability.
DELIVERED WITH
K5 Pro Wheelset
x 1
Rim Tape
x 2 (Pre-installed)
Tubeless Valves
x 2 (Pre-installed)
TPU Tubes
x 2
Boostor Water Bottle
x 1
KEY TECHNOLOGY
MINI HOOK
For high performance road bikes our mini-hook design based on MH Tech gives improved aerodynamics, more tyre choice and more set-up options.
Refined Finish
By embracing sustainability and cutting-edge practices, our RF paintless technology eliminates the need for traditional paint, offering a host of advantages that set us apart.
ANGLED SPOKE HOLES
Matching the angle of the spoke hole to the angle that the spoke leaves the rim at means that we can greatly reduce the stress at the spoke head by using ASH.
Dynamic Reinforcement
Through the integration of a pre-made carbon stripe with variable thickness, DR provides exceptional resistance to pulling forces while reducing weight in non-drilling sections.
Duraflex Carbon Fiber
By harnessing the lightweight properties of high modulus carbon fiber DCF, we ensure exceptional maneuverability without compromising structural integrity.
TUNED STIFFNESS
A wheel isn’t just a rim, hub and spokes, rather a system which works together and where many elements have an effect on performance. Spoke tension makes a massive difference to the stiffness and feel of a wheel.
